Our Equipments

Precíziós portálmaró gépeink robusztus kialakítása lehetővé teszi, hogy a legkülönbözőbb fajtájú és vastagságú anyagokat munkáljunk meg nagy pontossággal. Portálmaró gépeink az iparág élmezőnyébe tartoznak, mind megmunkálási módjuk, mind pedig precizitásuk tekintetében.

• Típus: MultiCam Router 3000 Series
• Megmunkálható vastagság: 1-60 mm
• Főorsó max. fordulatszáma: 32.000 f/perc
• Megmunkálás során keletkező belső rádiusz: R 0,5-től igény szerint
• Tűrés: ISO 2768-mK
• Megmunkálható alapanyagok: általános műanyagok, műszaki műanyagok, könnyűfémek
• Darabszám: 2
• Szerszámtár: 11 férőhelyes
• Anyag rögzítés: vákuum asztalos

The robust design of our precision portal milling machines allows us to process materials of various types and thicknesses with high precision. Our gantry milling machines are at the forefront of the industry, both in terms of their processing method and their precision.

• Type: Protek – Fresat
• Machinable thickness: 1-50 mm
• Max. spindle speed: 24 000 rpm
• Internal machining radius: from R0,5 on request
• Tolerance: ISO 2768-mK
• Machinable materials: general plastics, engineering plastics, light metals
• Number of pieces: 2
• Tool magazine: 20 slots
• Material holding: vacuum table

A SignRacer 3020 síkágyas UV nyomtató kiváló minőséget nyújt nagy táblaméretek esetén is. A technológia lehetővé teszi a rétegezett nyomtatást, kiemelt grafikai elemekkel és prémium felületi megoldásokkal. Gyártást kis és nagy darabszámban, előzetesen egyeztetett határidővel vállalunk.

• Típus: SignRacer 3020
• Max. nyomtatási terület: 2050 x 3050 mm (3,05 x 2,05 m)
• Maximális anyagvastagság: ~100 mm
• Felbontás: akár ~1200 dpi
• Színkonfiguráció: CMYK
• Megmunkálható alapanyagok: általános műanyagok, műszaki műanyagok, könnyűfémek
• Anyag rögzítés: vákuum asztal

With our 5 axis machining centre, we can produce almost anything from plastic or light metal efficiently and with high precision.

• Type: OPTIMUM FU5, 4+1-600HSC
• Machinable material thickness: up to 500 mm
• Number of machining axes: 5
• Spindle max. speed: 15.000 rpm
• Tolerance: for light metals: ISO 2768-fH, for plastics: ISO 2768-mK (taking into account the higher thermal expansion of plastics)
• Machinable materials: general plastics, engineering plastics, light metals
• Number of pieces: 1
• Tool magazine: 48 places

With our 3 axis CNC milling centre, we can machine all products with high precision and in a cost-effective way, where the machining required by the 5-axis is not necessary.

• Type: DMG MORI, ECOMILL 635V
• Machinable material thickness: up to 500 mm
• Number of machining axes: 3
• Spindle max. speed: 8.000 rpm
• Tolerance: for light metals: ISO 2768-fH, for plastics: ISO 2768-mK (taking into account the higher thermal expansion of plastics)
• Machinable materials: general plastics, engineering plastics, light metals
• Number of pieces: 1
• Tool magazine: 20 places

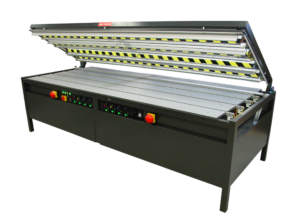

The Shannon HRP 300 is a modern plastic bending machine that can bend both thin and thick plastic sheets with great precision.

• Working thickness: from 1 to 12 mm depending on the type of material
• Tolerance: ISO 2768-cL
• Materials: ABS, PMMA (Plexiglas), PET-G, PC (polycarbonate), Foamed PVC, PVC, PS (Polystyrene)
• Maximum bending length: 3000 mm
• Heating from both sides
• Max. bending angle available: 180°

Laser cutting machines can be used to cut and engrave certain types of plastics efficiently and without chips.The most commonly laser-cut material is PMMA(acrylic), whose cutting edge becomes mirror-smooth thanks to the heat applied, requiring no further finishing.

• Machinable material thickness: max. 10 mm
• Tolerance: ISO 2768-cL
• Materials: PMMA (acrylic), wood, ABS

The cold bending machine supports the processing of materials that can be safely and accurately bent in cold conditions, further expanding our capabilities to meet the needs of our customers.

• Machinable material thickness: max. 10 mm
• Tolerance: ISO 2768-cL
• Materials: ABS, PET-G, PC (polycarbonate), Foamed PVC, PVC, PS (polystyrene)
• Max. bending angle achievable: max. 90° depending on material type
• Table size: 1200 mm

Automatically operated sheet slicer with cutting tools specially designed for plastic processing, for accurate, non-destructive cutting of sheets.

• Type: HOLZMA HPP 250
• Machinable material thickness: max. 30 mm
• Spindle max. speed: 5440 rpm
• Machinable materials: general plastics, engineering plastics
• Table size: 2050×3050 mm
• Feed rate: 100 m/min

With our circular saw equipped with a unique cutting wheel, we can cut our block and rod type plastic materials to individual sizes.

• Type: Winter FS 315-2000
• Machinable material thickness: max. 90 mm
• Spindle max. speed: 5440 rpm
• Machinable materials: general plastics, engineering plastics

The tilting shaper help us to ensure that the edge chamfering, surface roughness and smoothness of the products we manufacture meet the requirements of our customers.

• Type: fields F700Z_1
• Machinable material thickness: max. 100 mm
• Spindle max. speed: 5440 rpm
• Machinable materials: ABS, PET-G, PMMA(acrylic), PC (polycarbonate), foamed PVC, PVC, PP foam, PS (polystyrene)
• Chamfer: max 15 mm
• Rounding: on request

The tapping machine can be used to thread large quantities of holes quickly and economically, as well as to place custom threaded inserts to our customers’ specifications with high precision and efficiency.

• Type: Mosquito Green Power 0,55 kW
• Materials to be machined: engineering plastics, general plastics, light metals

Our precision measuring equipment can also be used to check products with special measuring requirements. In addition, it is individually documented, even with the precision required by automotive suppliers.

• Accuracy: 2.4 µm + L /250 (according to ISO 10360/2)

Our production colleagues and quality controllers are provided with the properly calibrated manual measuring equipment to accurately perform quality control during production.

• Digital calipers: from 0 to 600 mm
• Digital protractor
• Radius templates, measuring tools
• Bore micrometer
• Surface Roughness Tester
